Specification
Supply voltage: from 4.8 V to 6.6 V
Range of motion: from 0 ° to 165 °
Type: digital
Working temperature: from -10 °C to 50 °C
Two angular contact
Stars: copper and aluminum
Motor: DC
Management:
The control signal frequency: 333 Hz
Neutral position: 1500 µs
Turn clockwise:
1500 -> 2000 µs
The maximum pulse range: 800 - 2200 µs
Connector: standard JST connector
Cable length: approx. 170 mm
Dimensions: 40,7 x 20.5 x 37.5 mm
Weight: 60 g

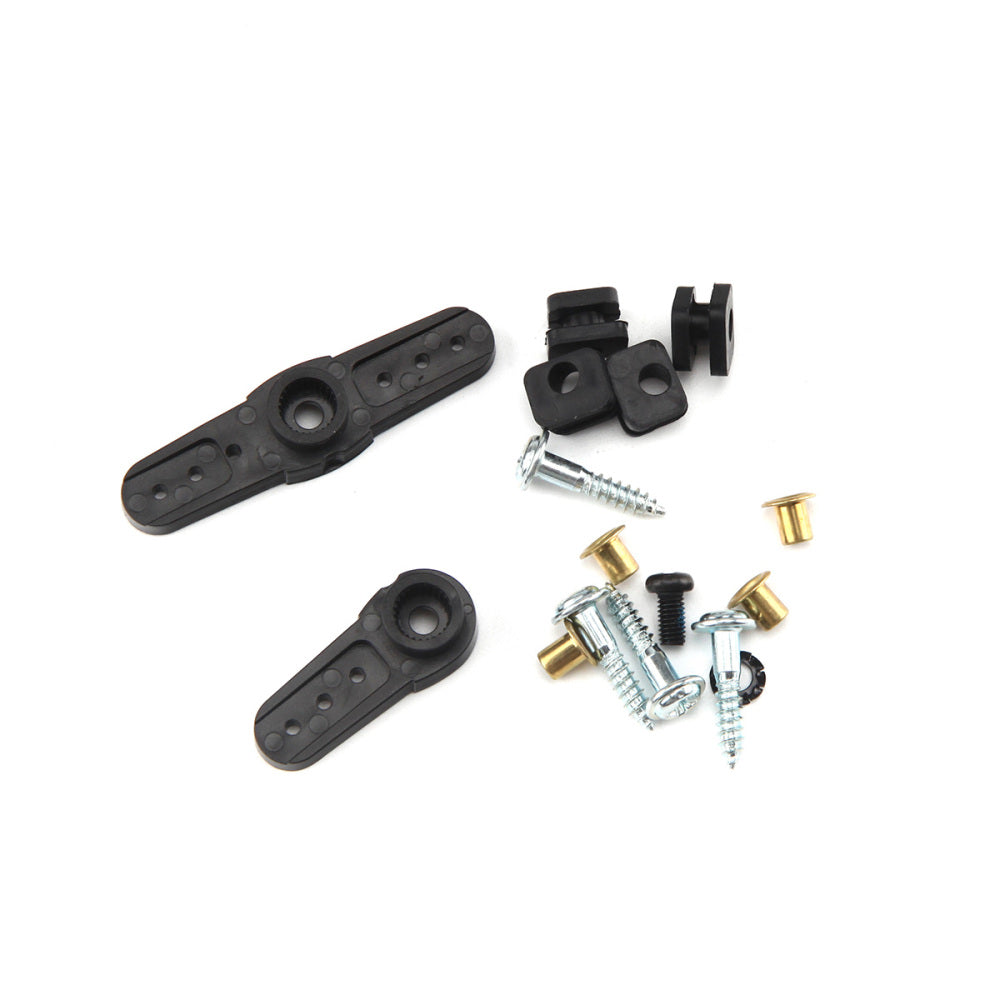

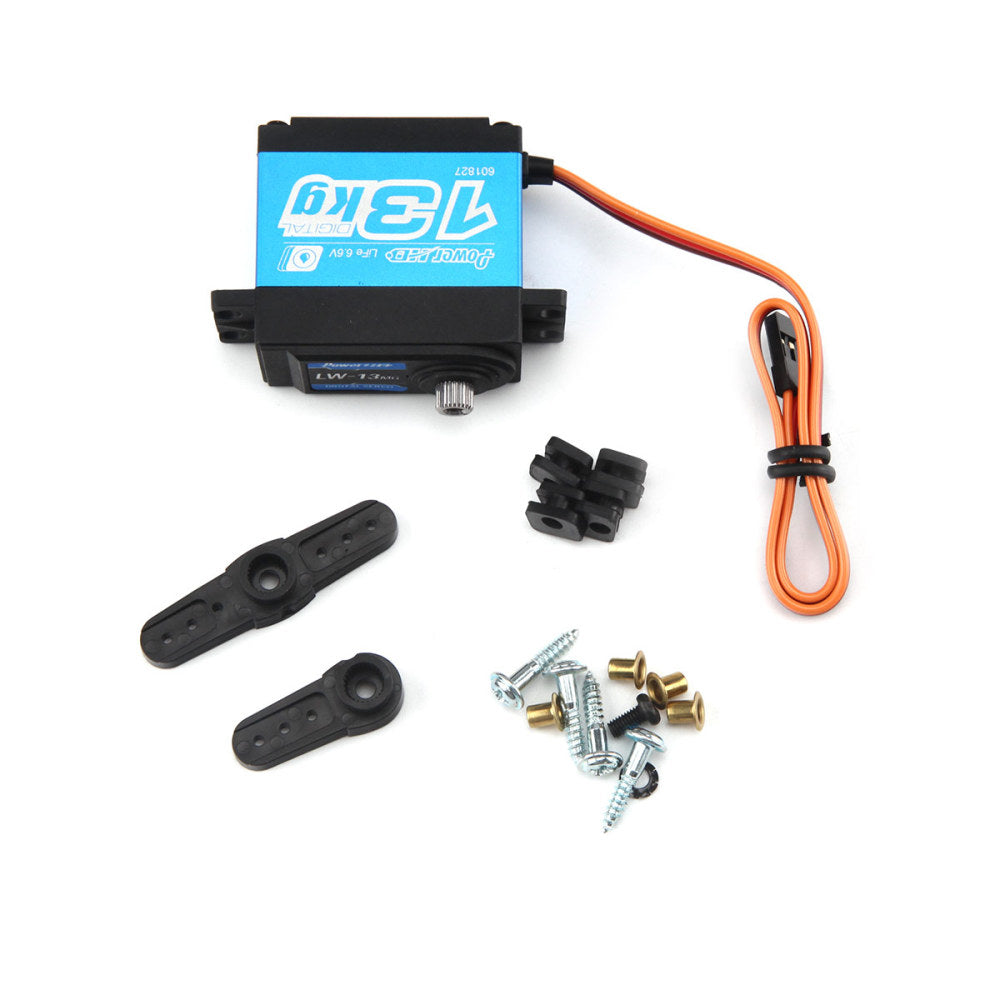

Complete set of servo horns, washers and screws
Settings for 4.8 V
Torque: 10.5 kg * cm
Speed: 0.15 s/60°
Current consumption at rest: 4 mA
Current consumption without load: 400 mA
Current consumption maximum: 2480 has
Settings for 6.6 V
Torque: 13 kg * cm
Speed: 0.15 s/60°
Current consumption in idle state: 5 mA
Current consumption without load: 500 mA
Current consumption maximum: 2710 has
| Vendor | RC Heaven Hobbies |
|---|---|
| Type | Parts & Accessories |
| Weight: | 0.1 kg |
